The infrared receiver is hardware that sends information from an infrared remote control to another device by receiving and decoding signals. The theoretic test distance of the kit is about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier, such as diaphragm, glass, obstructions or other material blocking.
Features
- Infrared remote control
- Digital output
- It can control all kinds of digital module
- It also can be used as DC motor controller
- Suitable for relay
Specification
- High level range: 3V-5V
- Low level range: 0-0.5V
- VCC connect with 5V-24V voltage, others are used as control interface
Kaina 2,20 €
(su PVM)
Prekės kodas:
0162 / PPK-307

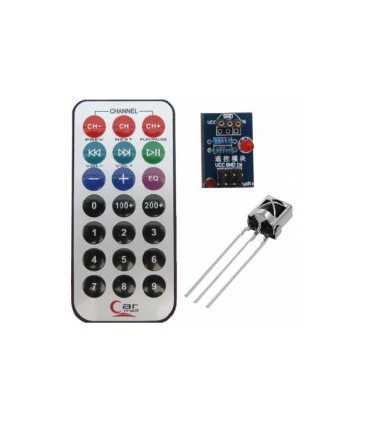

The Arduino infrared wireless remote control kit is composed of a Mini ultra-thin infrared remote control and a 38KHz infrared receiver module. The Mini ultra-thin infrared remote control has 17 function keys and a transmission distance of up to 8 meters, which is very suitable for controlling various equipment indoors. The infrared receiving module can receive the standard 38KHz modulated remote control signal. By programming the Arduino, the remote control signal can be decoded, and various remote control robots and interactive works can be made.
Ultra-thin infrared remote control product parameters:
1. CR2025 environmentally friendly button battery, capacity 160mah
2. Transmitting distance: more than 8m (specifically related to the surrounding environment, the sensitivity of the receiving end and other factors)
3. Effective angle: 60 degrees
4. Surface paste material: 0.125mm PET, effective life is 20,000 times.
5. Stable quality and high cost performance
6. Quiescent current 3-5uA, dynamic current 3-5mA.
