Nuoroda: DRI-DZ-6
Kaina
10,90 €
(su PVM)
Dvigubas jungiklis 5P, ON-OFF, 16A, 230V,

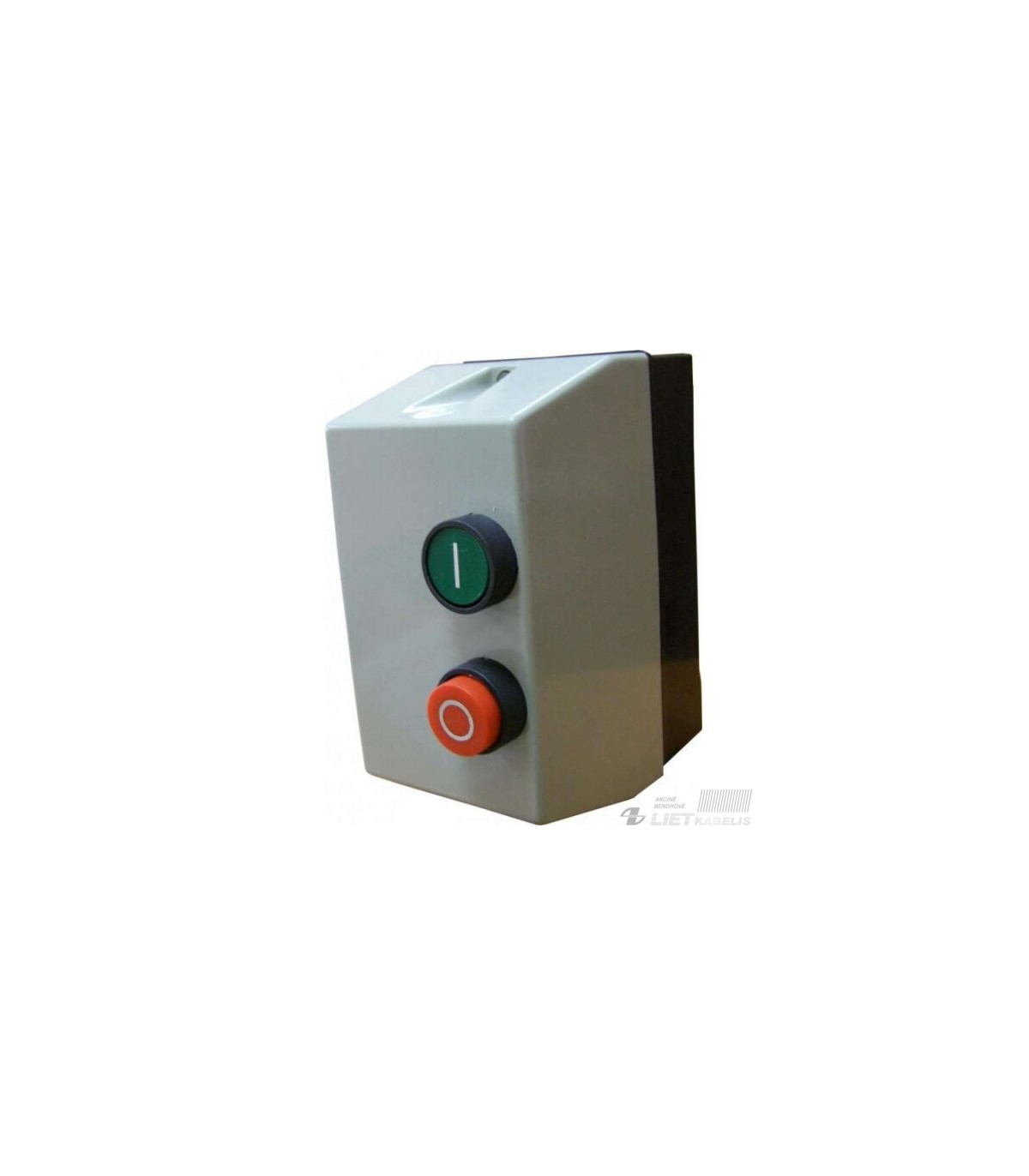

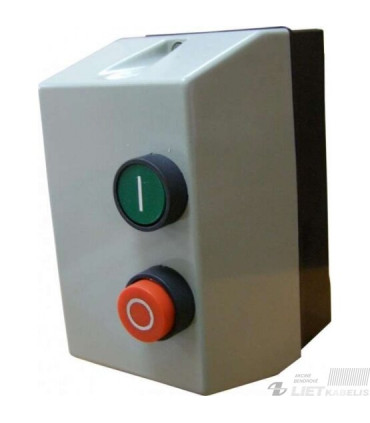

Automatinis Išjungėjas ,magnetinis variklio paleidimo blokas 230V 18A ( 7,5kW) GWIEC
Dažniausiai naudojamas variklių paleidimui.
Kaina 21,50 €
(su PVM)
Prekės kodas:
LE1-D18
QCX2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and
breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power
consumption, high efficiency, safe andreliable performance.
It complies to IEC947-4-1.
Model and meaning:
Specification:
| Model | Rated operational current (A) 380V | Conven-tional heating current(A) | Power of controllable 3 phase squirrel-cage motor (kW) AC-3 | Average power con-sumption VA (20ºC)50Hz | ||||
| AC-3 | AC-4 | 220V | 380V | 660V | Pick-up | Holding | ||
| QCX2-09 | 9 | 3.5 | 20 | 2.2 | 4 | 5.5 | 76 | 9.4 |
| QCX2-12 | 12 | 5 | 20 | 3 | 5.5 | 7.5 | 76 | 9.4 |
| QCX2-18 | 18 | 7.7 | 32 | 4 | 7.5 | 10 | 76 | 9.4 |
| QCX2-25 | 25 | 8.5 | 40 | 5.5 | 11 | 15 | 110 | 11 |
| QCX2-32 | 32 | 12 | 50 | 7.5 | 15 | 18.5 | 110 | 11 |
| QCX2-40 | 40 | 18.5 | 60 | 11 | 18.5 | 30 | 230 | 32 |
| QCX2-50 | 50 | 24 | 80 | 15 | 22 | 33 | 230 | 32 |
| QCX2-65 | 65 | 28 | 80 | 18.5 | 30 | 37 | 230 | 32 |
| QCX2-80 | 80 | 37 | 110 | 22 | 37 | 45 | 230 | 32 |
| QCX2-95 | 95 | 44 | 110 | 25 | 45 | 55 | 230 | 32 |
