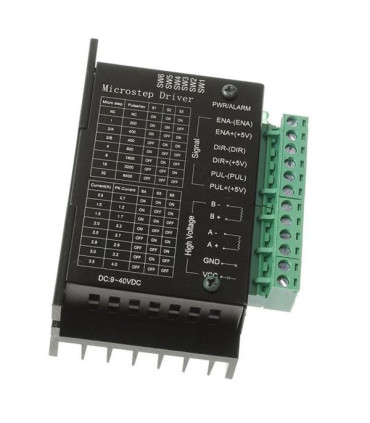

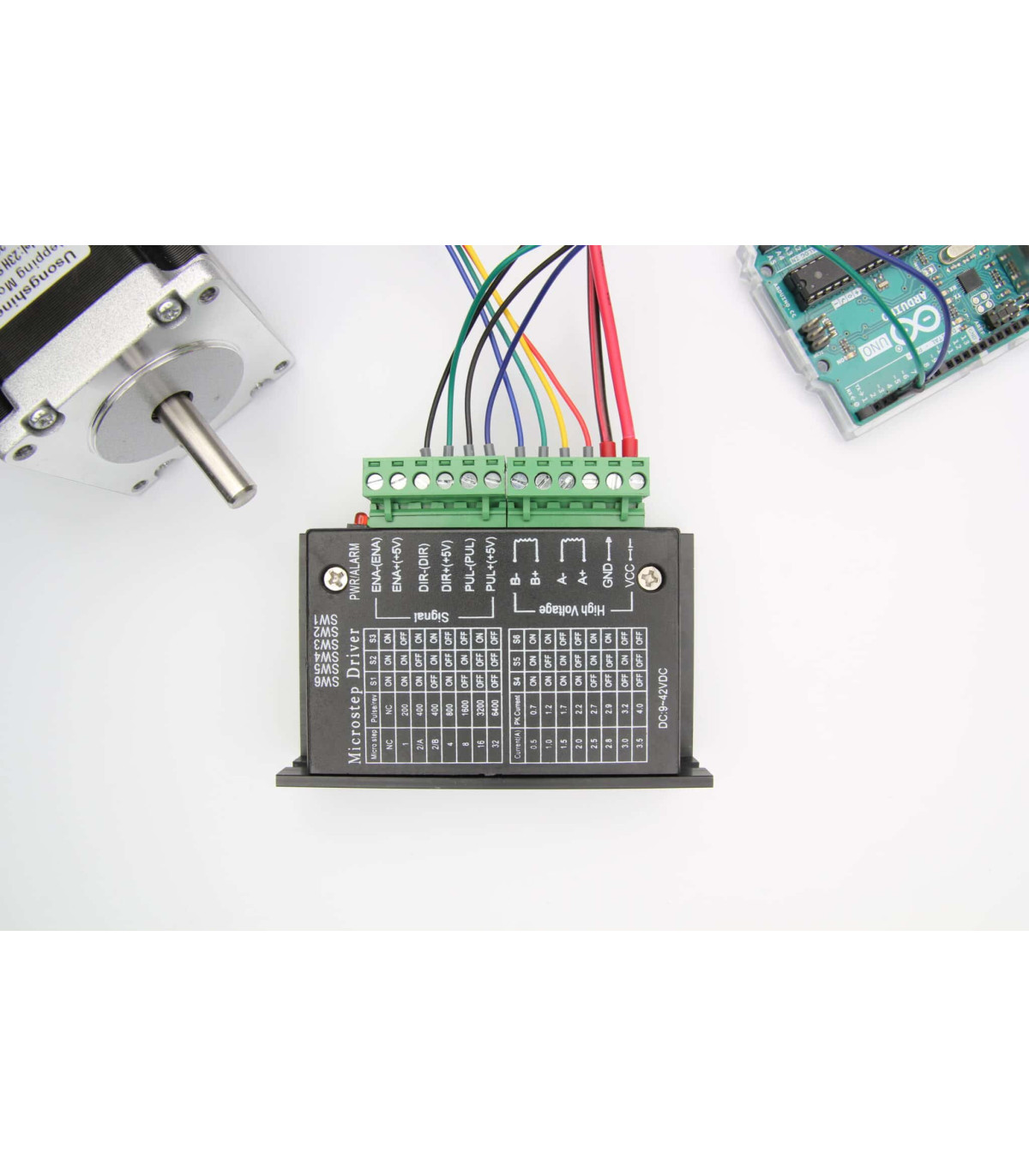

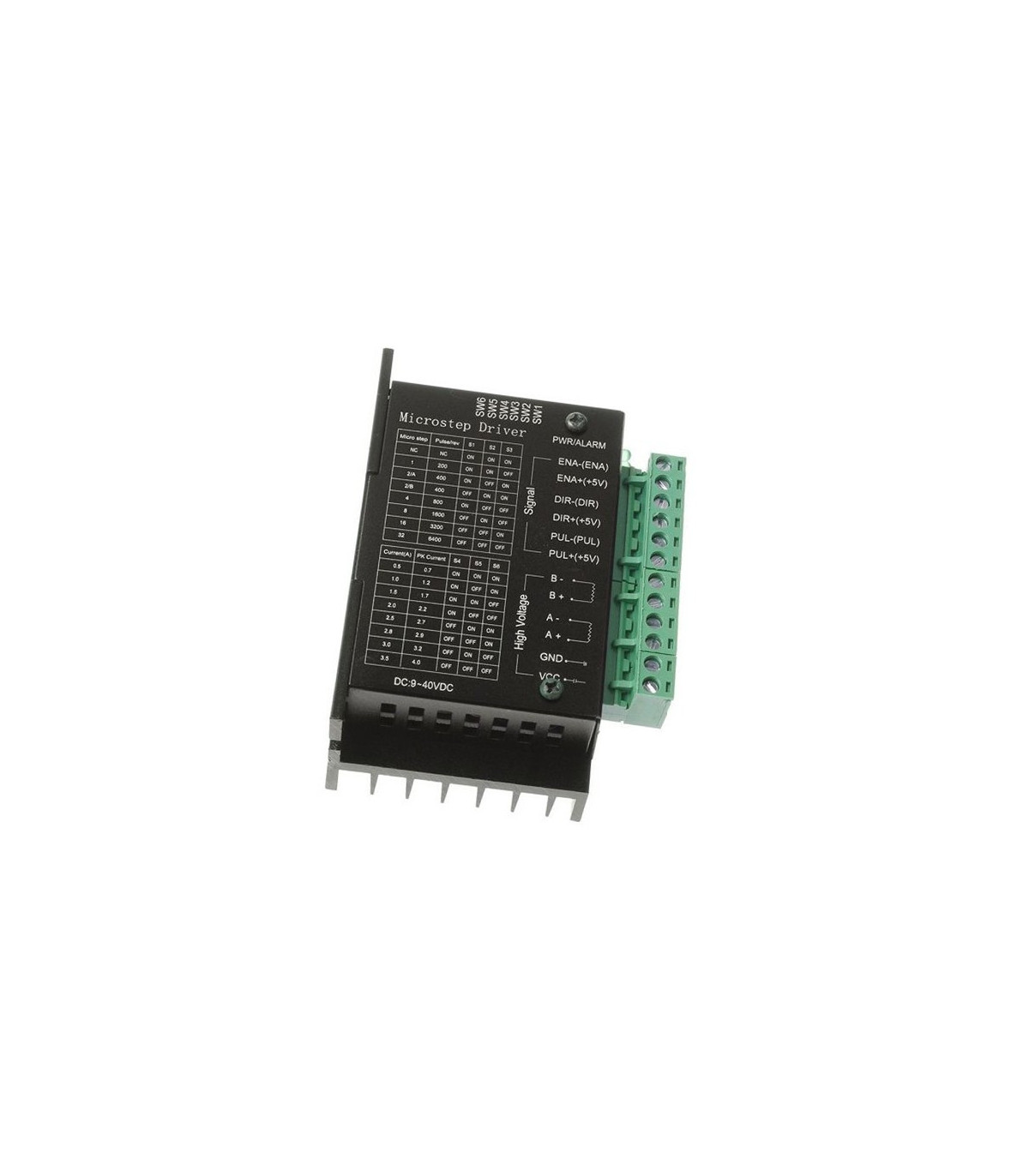

TB6600 žingsninio variklio valdymo modulis DC12-45V

1) The working voltage is DC 10V-45V. It is recommended to use a switching power supply DC32V for power supply.

2) The use of 6N137 high-speed optical coupling to ensure high-speed without losing step.

3) Using Toshiba's newly launched high-current, high-voltage TB6600HG
brand new original chip, there are low-voltage shutdown, overheating
shutdown and over-current protection circuits, and short-circuit
protection is added compared to TB6560.

4) Rated output: ±4.5A.

5) Suitable for 42, 57, 86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.

6) Automatic half-flow function.

7) Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, 16 subdivision.

8) Volume: width 50 * length 82 * height 35 (MM)
